The bucket elevator is almost a binary component of any blasting machine: either it works or it does not, and if it does not, the whole machine stops until you fix it. No half-measures, no way around it. A quick overview of how a wheel blast machine works is here. Extra clarification: a bucket elevator of a peener or shot peening machine is exactly the same item, so all the page content applies.
⚙️ Elevator down right now? The Vortex App guides you through it on your own machine, in-shift — and if the AI can't crack it, you reach me directly inside the app (VortExpert), one tap away.
The elevator lifts the abrasive back to the top for a new run. Beside the point where the blastwheel propels the media, gravity rules the flow inside the blaster, so there is a point where it reaches the bottom and has to be brought back up — that is what the elevator does. If it does not, media stays on the bottom and the process stops; a decent blaster has sensors that stop the machine and advise the operator, reporting to HMI.
What does a bucket elevator look like on a blasting machine?

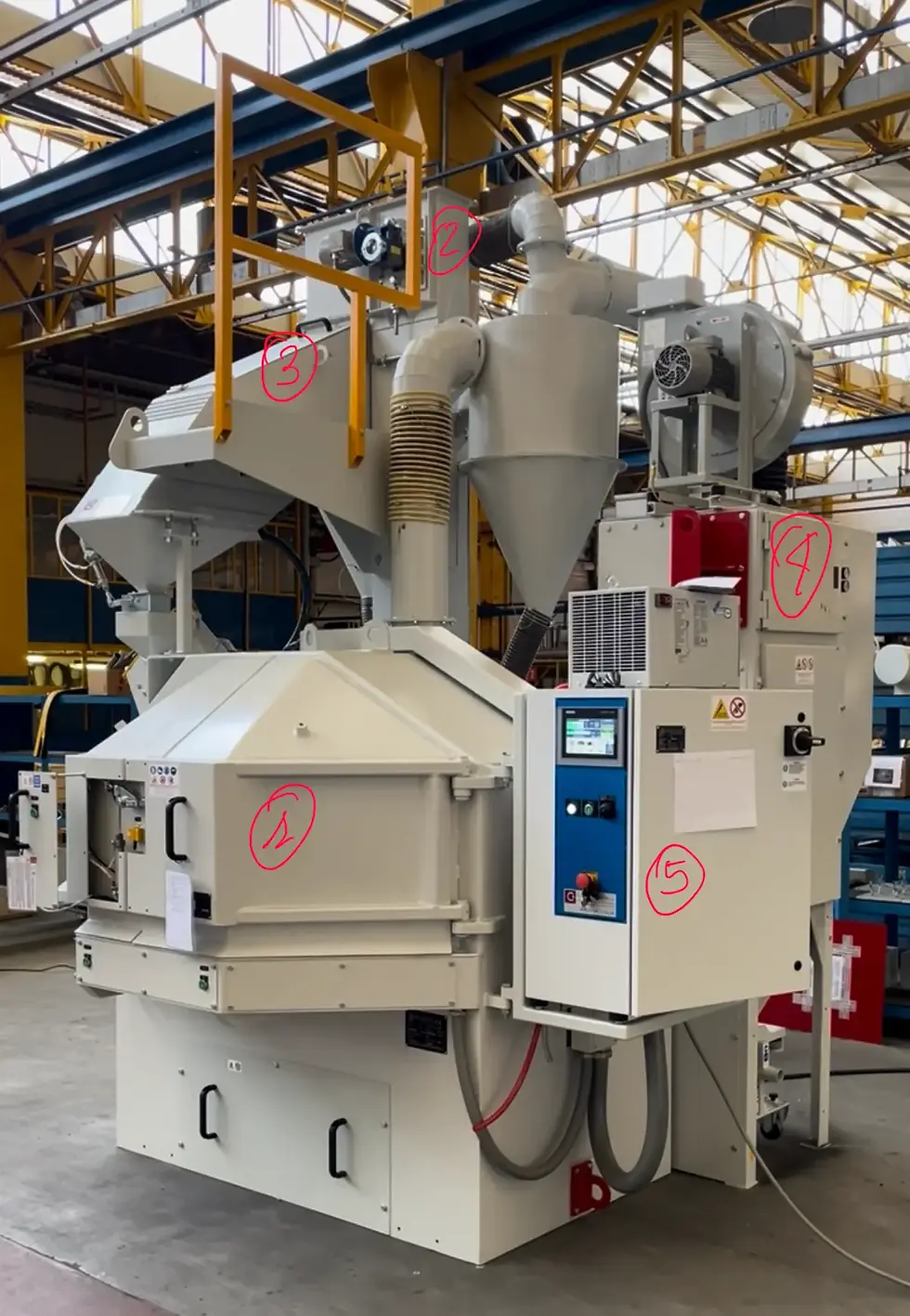

A bucket elevator looks like a slim column — the leg — always attached somewhere to the cabin. At the bottom, the boot, there is a filtering station that ensures only clean media, without debris or parts, reaches the inside of the column; on the top, an electric motor drives the lifting movement.
How does a bucket elevator work inside?
Inside the column there are two shafts, each with its own pulley, installed on ball bearings to rotate easily. The top shaft is usually the driver and the bottom one is driven; the belt with installed buckets provides the lifting, taking motion from the top shaft. Belt tension is critical — all decently built elevators have a way to adjust it.
Common elevator issues and how to fix them.
👉RISK OF INJURIES.👈
Following operations must be performed by skilled maintenance people.
1) Why are the elevator buckets bumping against the column?
Buckets bumping against the column mean the belt has lost tension through wear or age, and that is the first sign you get. There is an access panel on the side of the column to check operation and tension. Stop the blaster immediately, find out how to increase belt tension, then start again. While you are inside, check the belt itself, especially around the junction area; if it is worn, plan a replacement. Always refer to the blaster manual.
2) Why is abrasive media accumulating inside the elevator column?
Media building up inside the column usually comes from insufficient belt tension: without enough grip between the pulleys and the belt, the belt slips under load and stops lifting.
And once media starts building up at the bottom, the problem feeds itself. The buckets are designed to scoop through a certain quantity of moving media — not to dig through a packed mass. What they meet instead is a block, so the belt has even more resistance to overcome, slips more, lifts less, and the accumulation grows. Left alone, the belt simply stops turning.
As per point 1 above, tension the belt.
There is another cause worth knowing about, and it has nothing to do with tension: how well the media flows.
Small spherical shot flows almost like water. Grit does not. Angular media tends to hold up at certain points in the circuit, build up there, and then release all at once — and what arrives at the boot is not a steady stream but a slug. The elevator chokes on it, and from the outside it looks like a random failure with no cause at all.
I have seen this one on plenty of machines. If your accumulation comes and goes with no clear pattern, and you are running grit, look at the path the media takes before the elevator rather than at the elevator itself.
3) Why elevator bearings fail — and why the new one fails too.
Elevator bearings fail from dust, not from load. They turn slowly under modest loads, so none of the demanding conditions bearings are normally specified for apply here — and for a bearing, dust is worse than water.
There are excellent bearings certified to run in contact with water; there is no such thing for abrasive dust. The bottom ones go first, though the top ones are not exempt. The elevator itself is otherwise a simple machine that runs for thousands of hours with no intervention at all.
So every machine manufacturer has worked out its own way of shielding them, over years of doing it. And here is where the sequence goes wrong.
When a bearing seizes, the natural move is to take what's in the store or reorder locally, because quoting it through the machine builder costs considerably more. Nothing wrong with that: the bearing itself is a standard part, SKF, Koyo, whoever, and it arrives with its housing. What does not arrive is the element that keeps the dust out — because that element belongs to the machine assembly, not to the bearing.
Fit the new bearing without it and a life of several thousand hours becomes a few dozen. Sometimes ten. And the first conclusion is always that the bearing was faulty, so it gets replaced again, with all the downtime that involves, and it fails again ten hours later. What is missing is the protection.
On some machines it is a felt: a shaped piece of fabric that costs nothing, and that in the right position is the difference between thousands of hours and ten. On others it is something else. It is in the manual, and it is worth reading carefully enough to understand what it is and what it does.
**One more thing: do not grease them.** Bearing manufacturers publish regreasing intervals, and in most applications following them is correct. Not here. These bearings turn slowly, for a long time, under light load — and the grease that works its way out of the cage, harmless anywhere else, becomes glue for abrasive dust. That mixture grinds the bearing, the shield and often the housing itself. All damage, no benefit.
4) Why is media not evacuating from the cabin? Check the boot filtering station.
The filtering station at the boot exists to make sure only clean media reaches the elevator, and when debris or a dropped part obstructs it, the media stops evacuating from the cabin. Check that it is clear and working before looking anywhere else — anything that gets past it causes trouble on the belt first and on the blast wheel later.
5) Why is abrasive media coming out of the elevator onto the floor?
Media on the floor around the base of the column is two completely different faults that look identical from outside, so open the inspection panel and look in before doing anything else.
**The column is full.** Then this is not a leak, it is point 2 above: media has been accumulating inside until the level reached a point where it simply spills out. The overflow is the symptom, not the fault. Fix the accumulation and the floor stays clean.
**The column is clear.** Then the media is escaping from somewhere it shouldn't. Check the filtering station before the column — a quick visual check confirms whether it is clogged, and a cleaning fixes it — and check the seals and gaskets, which wear out like everything else here.
Either way, find the root cause. Shots on the floor make it slippery and unsafe, and lost media is money thrown away — straight onto your OPEX.
DISCLAIMER: always refer to the blaster (or peener) manual. The information above is intended for skilled maintenance personnel only.
One thing to be clear about.
Everything on this page — belt tension, bucket alignment, bearing checks — is general. It's the shared knowledge of the trade. You'll find the same concepts in any good manual, and the AI will give them to you too. That's not the hard part.
The hard part is applying them to your machine: your model, your layout, your tolerances, your quirks. Generic knowledge doesn't tell you which bolt, which value, which sequence on the unit in front of you.
That's what the Vortex App does. It runs these same principles against your machine's own manual — the one you upload — so the guidance is about your elevator, not "an elevator." And if you need it, you can get help directly from me inside the app (VortExpert) — a real specialist, one tap away, right where you're working.
Generic skills get you the concept. Your manual gets you the way to apply them.
